ALTA/NSPS land title surveys in Alabama

Before buying certain property – especially commercial – it’s important to have a detailed ALTA/NSPS land title survey of the land and all its improvements. Our survey team is highly experienced in preparing them.

  • ALTA/NSPS standards
  • Commercial property
  • For lenders & title companies

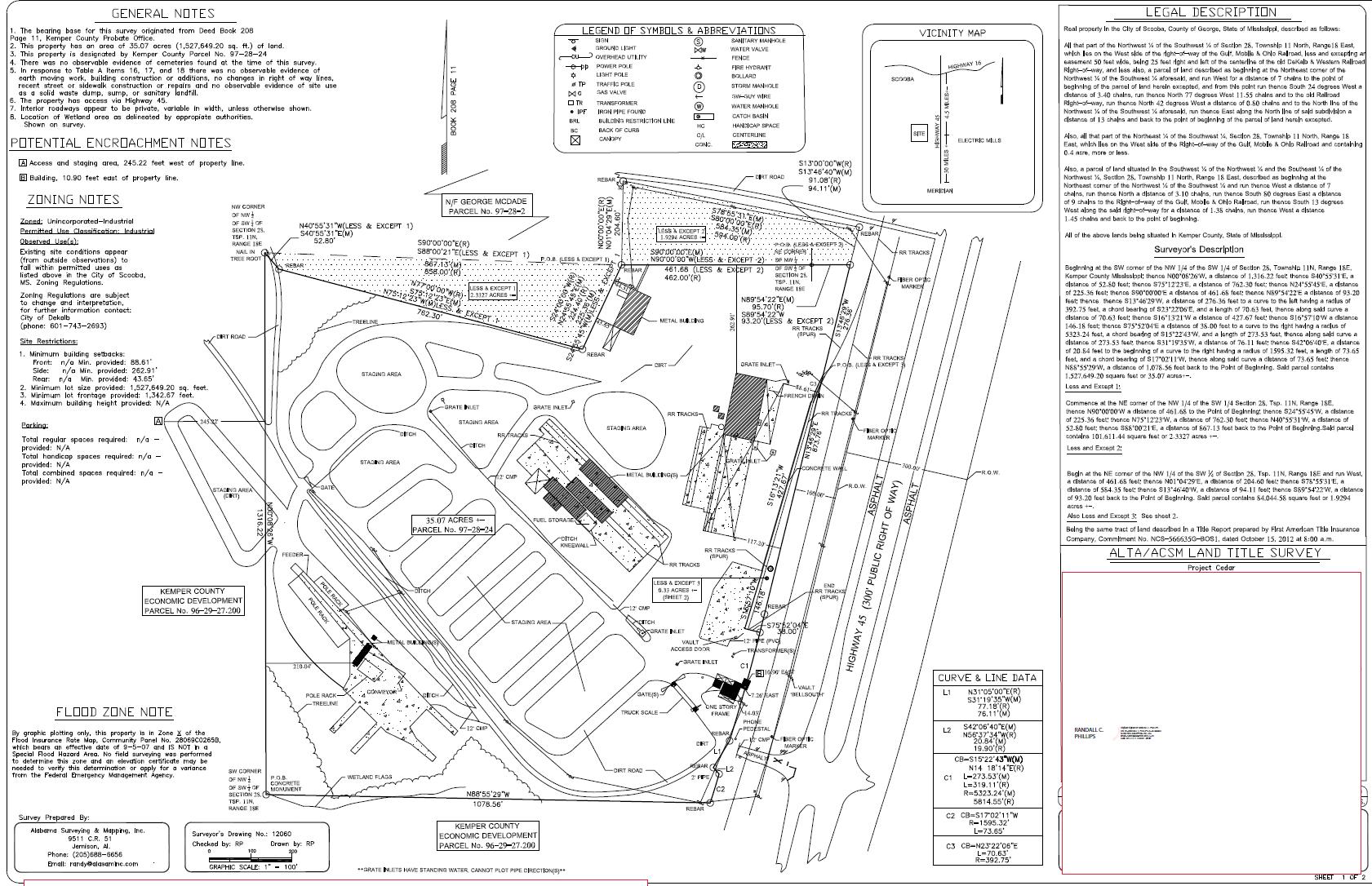

Sample ALTA/NSPS land title survey drawing of a commercial site

Why an ALTA/NSPS survey

Peace of mind before a big purchase

Commercial purchases usually require an ALTA/NSPS survey by the lender. Easements may not be documented in public records, and a boundary or encroachment problem can derail the transaction.

Lenders want protection from future claims arising from problems not identified by a title search. Vacant land may only require a boundary survey, but an ALTA/NSPS survey is recommended.

The ALTA/NSPS survey is often stricter than state standards – a combination of a boundary, title and location survey that follows the Minimum Standard Detail Requirements adopted by the American Land Title Association and the National Society of Professional Surveyors.

What an ALTA/NSPS survey may include

  • Property boundary lines
  • Main building – location & elevation
  • Improvements – location & elevation
  • Easements (water, gas, electric, phone, cable, railroad…)
  • Consequences of easements – now and for future development
  • All structures – location & elevation
  • Utilities, walkways, driveways, fences, roads
  • Water features and water boundaries
  • Zoning setbacks and restrictions
  • Public road access
  • Possible encroachments
  • Flood zones (if any)
  • Adjacent property owners’ names
  • Evidence of cemeteries
  • Evidence of land use by other parties
  • In-depth history research

Not a comprehensive list – some items may not be included in every survey.

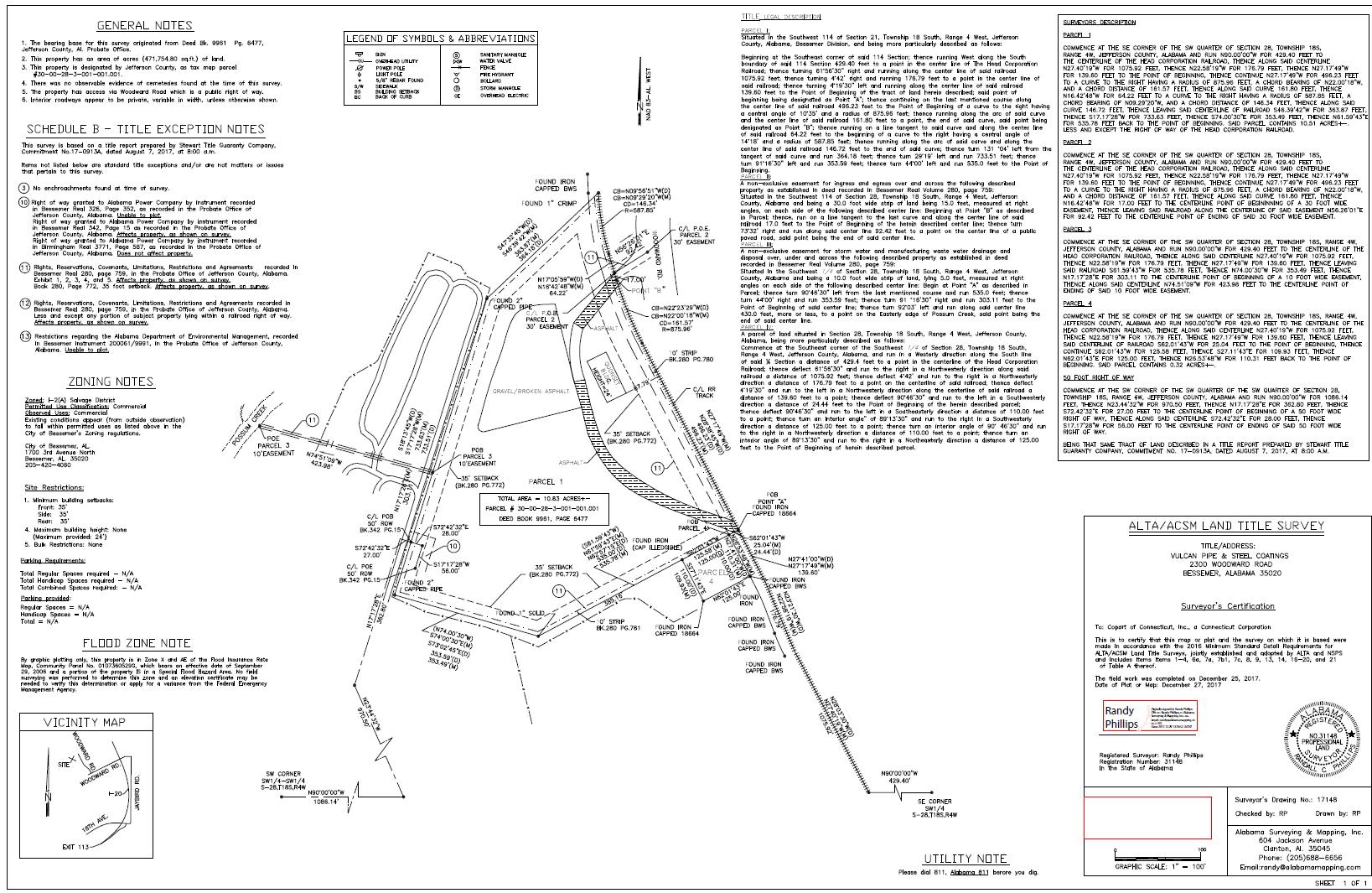

Sample drawing

Detail you can zoom into

Hover (or touch) the drawing to inspect it with the magnifier.

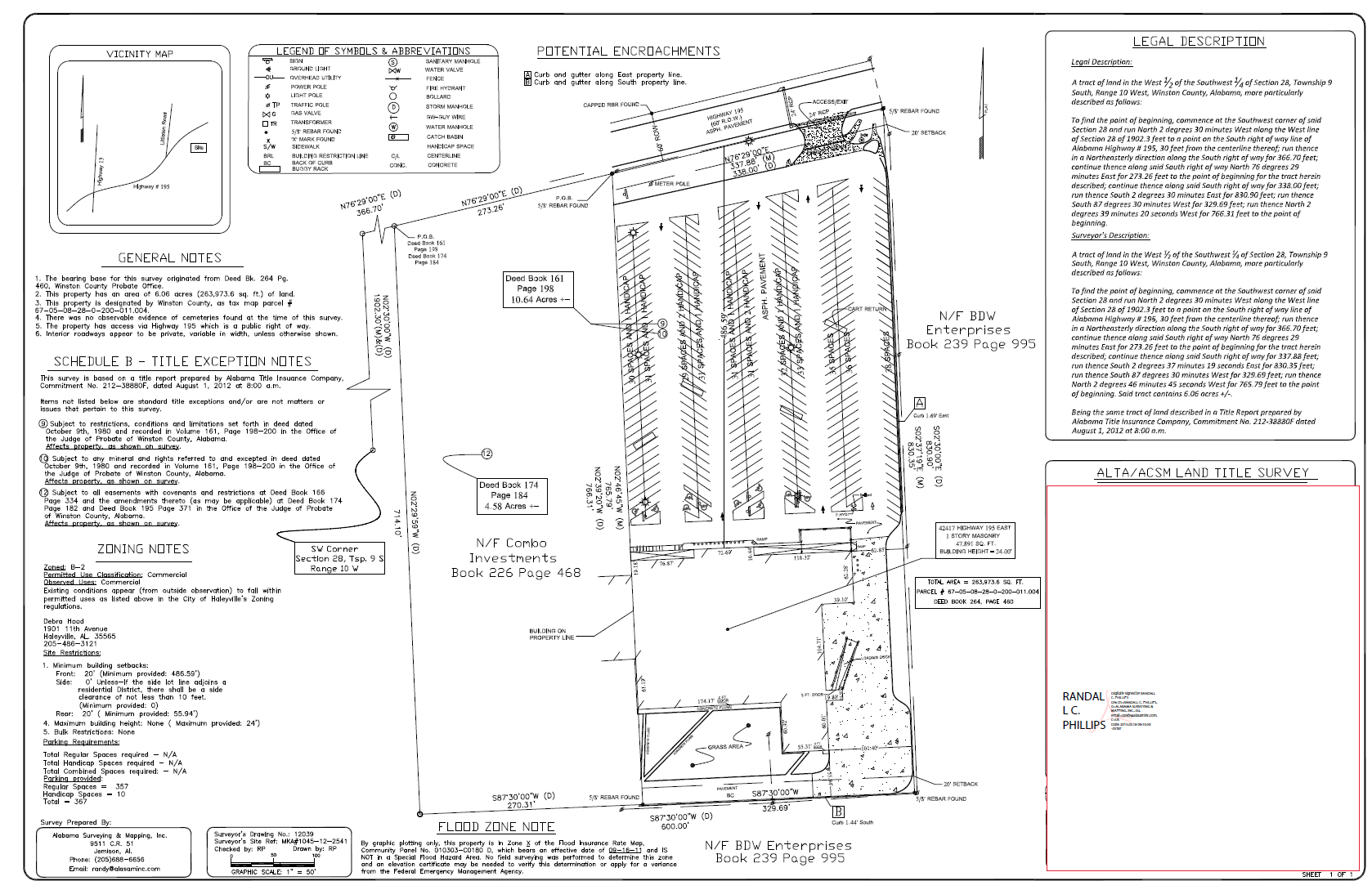

ALTA/NSPS land title survey drawing – full sheet

Good to know

How an ALTA survey fits into your closing

An ALTA/NSPS survey is ordered together with the title commitment. The lender and the title company decide which optional items from Table A of the standards they need – for example flood zone classification, building heights and floor areas, parking counts, utilities or zoning information. We review the title commitment and every recorded easement it lists, then show on the drawing where each one affects the property.

Because the survey is certified to the buyer, the lender and the title company, everyone at the closing table works from the same facts: where the lines are, what is built on the land, who has a right to cross it and whether anything encroaches. Problems found early can be cured before closing instead of after.

We prepare ALTA/NSPS surveys for commercial and industrial property across Central Alabama – from retail and fuel sites to apartment complexes. Call Randy with the address and the title commitment, and you get a clear scope and a quote.

Questions & answers

ALTA/NSPS survey questions

What is the difference between an ALTA survey and a boundary survey?

A boundary survey locates the property lines and corners. An ALTA/NSPS survey adds the title side: every recorded easement, improvements, access, encroachments, flood zone and the optional items the lender requests, prepared to national standards.

Who orders an ALTA survey?

Usually the buyer or their attorney, because the lender or title company requires it for a commercial purchase or refinance.

What do you need from me?

The property address or parcel, the title commitment with copies of the recorded documents, and the list of Table A items your lender requires.

Do you do ALTA surveys outside Clanton?

Yes – across Alabama, including Montgomery, Birmingham, Prattville and Shelby County.
